SKU: IBM7316-TF3

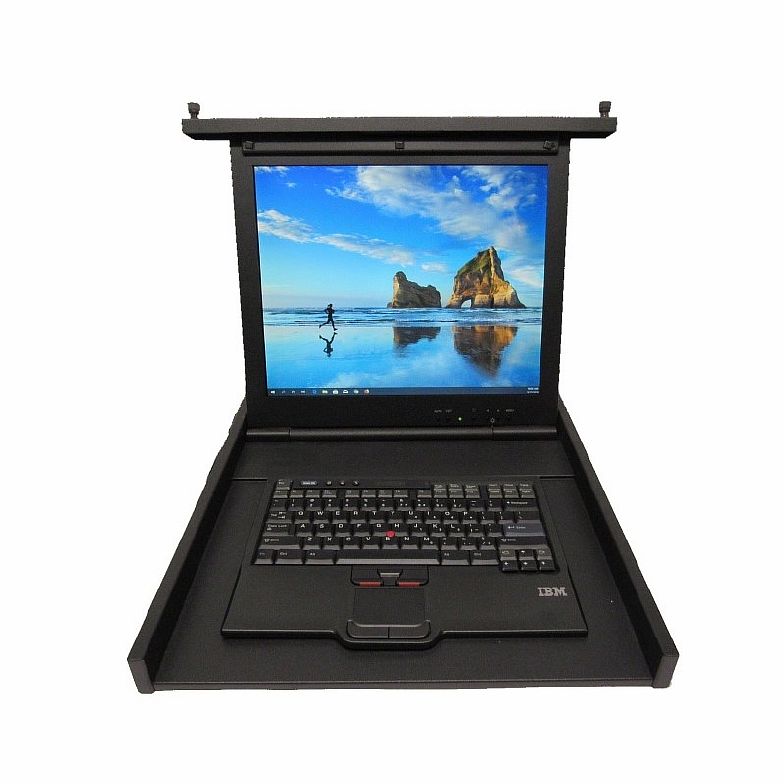

Refurbished IBM 7316-TF3 Panel Console Kit

General Information

• Occupying only 1U (1.75 inches) in a 19-inch standard rack in a slim, sleek, lightweight monitor design
• A truly accurate image and virtually no distortion with the 17-inch flat screen TFT Server LCD monitor
• Ability to mount the IBM Travel Keyboard in the 7316-TF3 rack keyboard tray (Keyboard Included)
• No Rail Kit for the Refurbished IBM 7316-TF3
• The IBM Travel Keyboard is a mandatory feature for the 7316-TF3; it mounts in the 7316-TF3 keyboard tray in the Flat Panel Console

Physical Specifications

• Width: 485 mm (19 in)
• Depth: Approximately 635 mm to 730 mm (25.0 in to 28.74 in)
• Height: 43.0 mm (maximum) (1.7 in)
• Height (opened): 410 mm (maximum) (16.1 in)
• Weight: 12.8 kg (28.2 lb)

LCD Panel

• Size: 432 mm (17 in) diagonal, 337.92 mm (H) x 270.34 mm (V) (13.3 in x 10.6 in)
• Type: a-Si TFT active matrix Flat Panel Console
• Pixel pitch: 0.264 mm (H) x 0.264 mm (V)

Warranty

• Limited 1 Year Warranty
